Waterco Micron side mount sand filter
Click to enlarge

Waterco Micron Filament Side Mount Bobbin Wound Filter

The ultimate in pool water clarity. Waterco fibreglass pool filters are perfectly suited to the constant increases and decreases in pressure experienced by sand filters. Accelerated cyclic testing has shown that even after simulating 20 years of use, Waterco fibreglass filters withstood cyclic wear and tear better than most other filters in its class.

Waterco is proud to show its ultimate confidence in its range of Micron fibreglass filters by offering a 10 year full tank warranty for residential installations.

  • Filter max working pressure 2.5 BAR
  • 10 Year Warranty.
  • UV Resistant.
  • 8” Removable clear lid.
  • Internal air bleed system.
  • Hydraulically balanced laterals to maximise water flow and filtration.
  • Multiport valve (4 BAR) comes c/w 1.5” & 50mm socket unions.

Trust in Waterco’s commitment to excellence and enjoy pristine pool water for years to come with our superior swimming equipment supplies.

£951.23

0 People watching this product now!
FIND A DEALER
MAKE AN ENQUIRY

PRICES

Waterco Filter with Multi-Port Valve & Pressure gauge

Code Description Price
1530-Y 500mm/20″ Bobbin Wound Side Mount £951.23
1531-Y 600mm/24″ Bobbin Wound Side Mount £1,013.98
1532-Y 700mm/28″ Bobbin Wound Side Mount £1,216.77
1533-Y 750mm/30″ Bobbin Wound Side Mount £1,584.12
1534-Y 900mm/36″ Bobbin Wound Side Mount £2,086.21
All Prices are excluding VAT 1.5″ MPV supplied with 20-28″ Filters, 2″ supplied with 30-36″ Filters.

PERFORMANCE

Model Inner dia.mm Bed Depth.mm Filter Area sq m3 Valve Size Sand Kg Zeoplus Kg Dom.flow m3/hr Max. pool size m2 Com. flow m3/hr Min. pool size m2
SM500 500 290 0.2 50/1.5 90 74 10 56 7 43.2
SM600 600 360 0.28 50/1.5 140 115 14 81 10 60.5
SM700 700 380 0.38 63/2 190 156 19 111 14 82.1
SM750 750 400 0.44 63/2 210 173 21 127 16 95
SM900 900 400 0.64 63/2 360 296 31 183 23 138.2

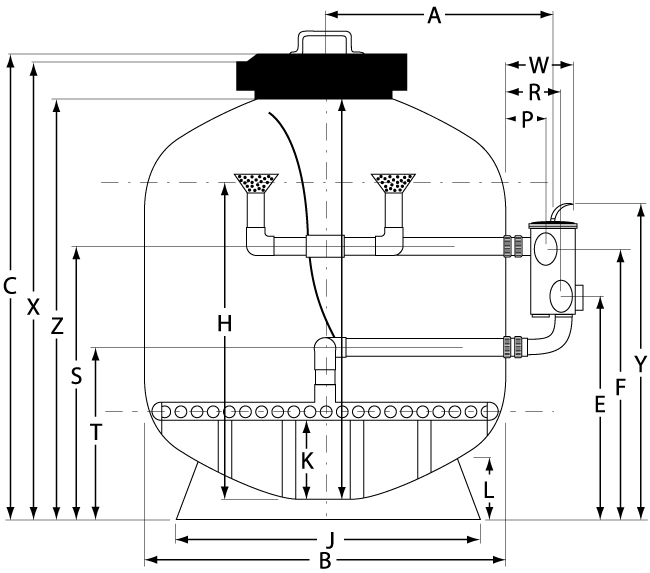

DIMENSIONS

A vertical domed pressure vessel (object) with internal piping and a perforated distributor plate routing fluid between inlet/outlet connections (action) shown as a dimensioned engineering drawing (context). Text: A, W, R, P, C, X, Z, S, T, H, K, L, J, B, Y, E, F.



Model A B C W R P E F K V H L X Y Z J S T
SM500 464 520 815 310 215 153 594 649 100 652 585 70 743 790 715 445 485 283
SM600 516 622 880 310 215 153 629 684 105 680 601 88 804 825 778 540 520 317
SM700 565 719 948 321 248 178 520 601 120 728 685 90 905 750 835 620 520 317
SM750 587 772 993 321 248 178 593 674 113 763 652 120 914 823 892 678 593 390
SM900 687 923 1115 321 248 178 656 737 130 860 750 120 030 886 1011 678 658 453
