Premium Underwater LED Pool Lighting
Established in 2005, Water-Tec has been providing bespoke underwater LED pool lighting for the swimming pool industry for many water features and designers such as William Pye and David Harbour.
All Water-Tec products are designed and manufactured in the UK by a team of highly qualified engineers. With LED now becoming the industry standard, Water-Tec can offer the very latest in LED technology along with a complete lighting control package.The WT series offers a high illumination set in an extremely elegant flush housing with an electroplated 316 stainless steel face. Fixing application could not be easier due to either push fit or threaded connection into ABS pipe, inlets or custom-made wall niches.
Trust Water-Tec to illuminate your swimming pool with sophistication and reliability, complementing your array of swimming pool equipment.
LED Coverage
The above lighting diagrams are to be used as a guide only.
Specifying lighting for a swimming pool has many variables. It is important to establish the intensity of light required within the pool and how many lights are installed to determine this. The colour of the pool finish, i.e. using dark tiles and the ambient light used for lighting the room must also be considered.
RGB (Red, Green & Blue) LED lighting has a much lower luminosity and is often used for ‘mood type’ lighting. Therefore, we suggest reducing the chart output figures by 50–75% dependent on whether single or multiple colours are used.

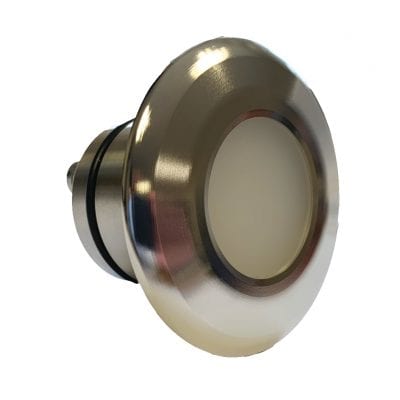

WT1 Medium Pool Light – 85mm Dia
The WT1 push fit LED lamp offers a high illumination set in an extremely elegant flush fitting housing with an electroplated 316L stainless steel face. The WT1 offers 100% control-ability, near zero heat projection and extreme reliability.
WHITE 1150 lm (7W) Cool 5000K
RGB 471lm (9W) Combined
- Current: 24V DC Constant
- Cable Dia: 6mm
- White Cable: 2-Core
- RGB Cable: 6-Core
- Light Coverage: 3-5 sqm — see lighting chart
- Fixing Method: Push-fit into 2” ABS Pipe

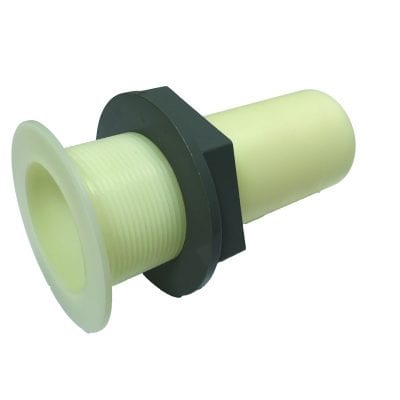

WT1 Spa Niche
Suitable for:
Spa Shells
WT1 White or RGB colour lights.
The WT1 Spa Niche is ideal for installing the push-fit WT1 lights into domestic or
commercial spas.
WT4442 CV-N
£142.00
WT1.5 Medium Pool Light – 85mm Dia
WHITE 1150 lm (7W) Cool 5000K
RGB 471lm (9W) Combined
- Current 24V DC Constant
- Cable Dia. 6mm
- White Cable 2-Core
- RGB Cable 6-Core
- Light Coverage 3-5 sqm see lighting chart
- Fixing Method Push-fit into 1.5” ABS Pipe
Suitable for:
Concrete Pools Only
White or RGB colour
Wireless/Bluetooth control
WT4442 CV-N
£345.00

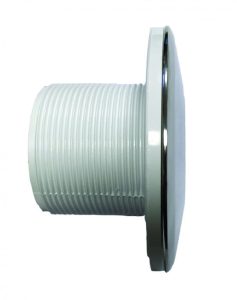

WT2 Thread-Fit Concrete Medium Pool Light – 106mm Dia.
Manufactured to the same specification as the WT1 the WT2 has an in-built external thread to fit any 1.5” BSP threaded inlet. Offering high lumination and an elegant fluted, electroplated 316L stainless steel face.
WHITE 1150 lm (7W) Cool 5000K
RGB 471 lm (9W) Combined
- Current 24V DC Constant
- Cable Dia. 6mm
- White Cable 2-Core
- RGB Cable 6-Core
- Light Coverage 3-5 sqm see lighting chart
- Fixing Method Screw-fit 1.5” Certikin Inlet
Suitable for:
Concrete / GRP Pools only
Wireless/ Bluetooth control
WT5555 CV-N
£345.00
WT2 Thread-Fit Liner Medium Pool Light – 87mm Dia.
An adapted version of the WT2, this light has been designed to fit any 1.5” BSP threaded liner faceplate inlet. All Liner WT2 are supplied with a complimentary ABS silver-coloured Certikin liner faceplate.
WHITE 1150 lm (7W) Cool 5000K
RGB 471 lm (9W) Combined
- Current 24V DC Constant
- Cable Dia. 6mm
- White Cable 2-Core
- RGB Cable 6-Core
- Light Coverage 3-5 sqm see lighting chart
- Fixing Method Screw-fit 1.5” Certikin Liner Faceplate
Suitable for:
Liner Pools
Only.
White or RGB Colour.
Wireless /Bluetooth control.
WT5557 CV-N
£345.00
WT3 Push-Fit Small Spa/Step Light – 55mm Dia.
The WT3 light has been designed to light up Spa or Step areas and can be supplied with either a round or square facia.
WHITE 350 lm (3W) Cool 5000K
RGB 171 lm (3W) Combined
- Current 24V DC Constant
- Cable Dia. 6mm
- White Cable 2-Core
- RGB Cable 6-Core
- Light Coverage 0.75 sqm see lighting chart
- Fixing Method Push-fit 1.25” (PN12-37mm
Suitable for:
Concrete Pools only
Wireless/ Bluetooth control
WT6666 CV-N
£238.00
WT4 Concrete Push-Fit Main Pool Light – 130mm Dia Fascia
The WT4 is ideal for new concrete pool installations. Designed to push fit into a plastic delrin housing niche (sold separately).
WHITE 2300 lm (14W) Cool 5000K
RGB 1884 lm (24W) Combined
- Current 24V DC Constant
- Cable Dia. 6mm
- White Cable 2-CoreDMX Driver
- Hard Wired (24V).
- RGB Cable 6-Core
- Light Coverage 5-7 sqm see lighting chart
- Fixing Method Push-fit 87mm dia Wall Niche – Sold Separately
Suitable for:
Concrete Pools only
Wireless/ Bluetooth control
WT7777 CV-N
£621.00

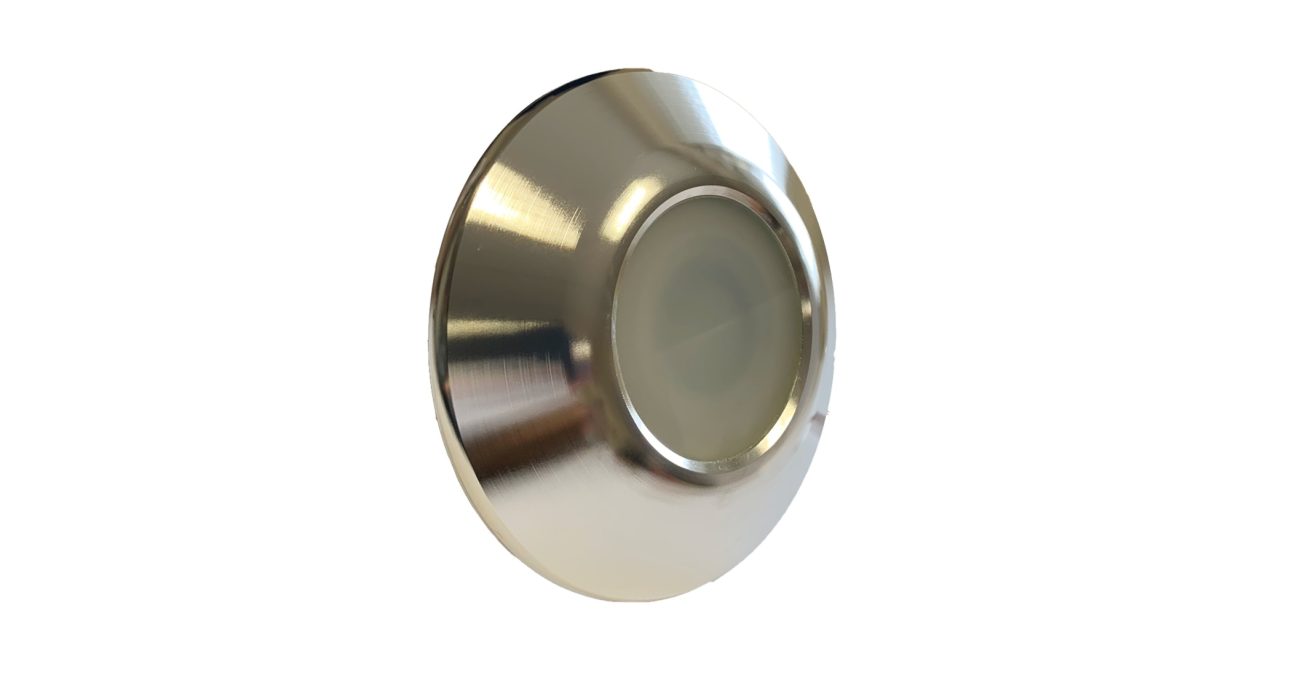

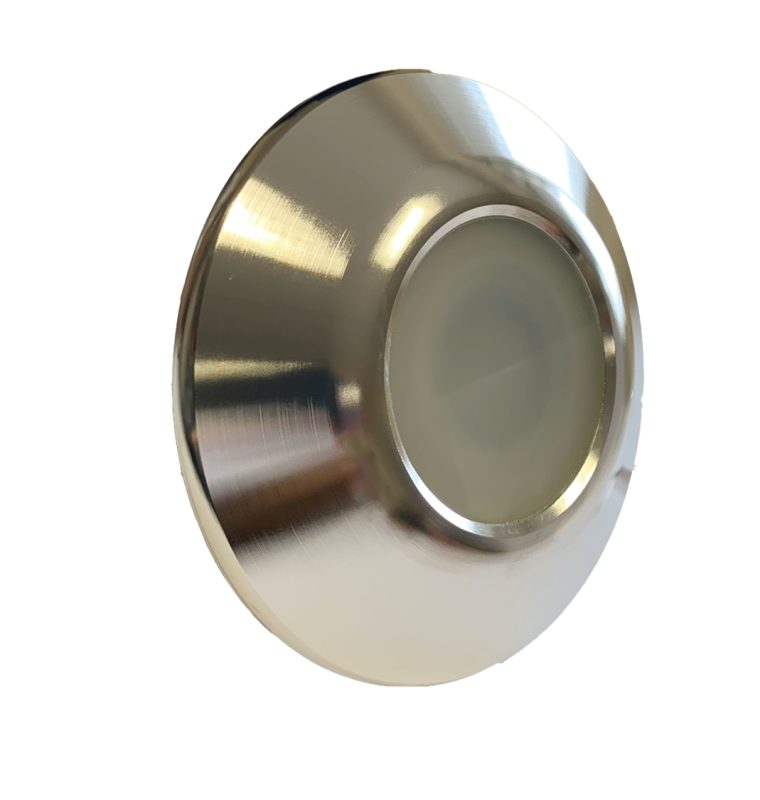

WT5 Thread-Fit Universal Main Pool Light for Concrete or Liner Pools – 150mm Dia.
The WT5 UNIVERSAL light is ideal for new or retro installations. Designed to screw into a dedicated 1.5” BSP Procopi Inlet (sold separately). The WT5 can also replace Adagio PLA 100 or 170 type lights (24V transformer required).
WHITE 1800lm (10W) Cool 5700K Warm 3000K
RGB 1884lm (30W) Combined
- Current 24V DC Constant
- Cable Dia. 6mm
- White Cable 2-Core
- RGB Cable 6-Core
- Light Coverage 5-7 sqm see lighting chart
- Fixing Method Screw fit 1.5” BSP Procopi Inlet
Suitable for:
Concrete GRP & Liner Pools
Wireless/ Bluetooth control
WT8888 CV-N
£654.00

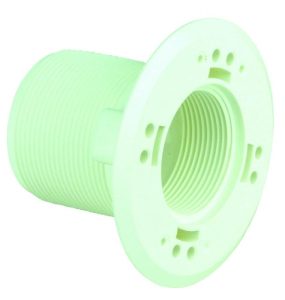

Procopi Inlet Fitting for Liner or Concrete Pool 1.5″
For use with the WT5 Universal Light.
WT8890-N
£46.50
WT5 Push-fit Main Pool Light for Concrete – 150mm Dia
The WT5 Push Fit light is ideal for new or retro installations. Designed to screw into a dedicated 2” BSP Procopi Inlet (sold separately). The WT5 can also replace Adagio PLA 100 or 170 type lights (24V transformer required).
WHITE 1800lm (10W) Cool 5000K Warm 3000K
RGB 1884lm (30W) Combined
- Current 24V DC Constant
- Cable Dia. 6mm
- White Cable 2-Core
- RGB Cable 6-Core
- Light Coverage 5-7 sqm see lighting chart
- Fixing Method Push Fit 2” Pipe
Suitable for:
Concrete Pools
Wireless/ Bluetooth control
WT8886 CV-N
£654.00
Replacement Lights
We are able to make custom made lights to replace the following brands:
- Adagio – Spa and pool lights
- Astral – Mini 52134
- Hugo Lahme
- Savi – Note
- Savi – Melody
Please contact head office for further details.
DMX Driver – with interface board
- Hard Wired (24V)
- Supplied by: Specialist Contractor
- Suitable for: White or RGB Lights
- Application: Indoor or Outdoor
Description:
DMX drivers are for use with DMX home-automation system supplied. Please contact head office to discuss your requirements.
WT9300-N
£135.00
Dimmer Patrice: White – Indoor (no waterproof housing)
- Hard Wired (24V)
- Supplied by: Watertec
- Suitable for: White Lights
- Application: Indoor
Description:
White Dimmer control enables the operator to turn lights on/off by touchpad. The intensity circle reduces illumination from 100-10%.
DIMENSIONS
Patrice Only: h80mm x w80mm x d35mm
WT9339-N
£135.00
Dimmer Patrice: White – Outdoor (with waterproof housing)
- Hard Wired (24V)
- Supplied by: Watertec
- Suitable for: White Lights
- Application: Outdoor
Description:
White Dimmer control enables the operator to turn lights on/off by touchpad. The intensity circle reduces illumination from 100-10%.
DIMENSIONS
Patrice Only: h80mm x w80mm x d35mm
Waterproof Housing h135mm x w125mm x d80mm
WT9342-N
£247.00
Dimmer Patrice: White – Stainless Steel Finish with Blue LED button – Indoor (no waterproof housing)
- Hard Wired (24V)
- Supplied by: Watertec
- Suitable for: White Lights
- Application: Indoor
Description:
White Dimmer control enables the operator to turn lights on/off by touchpad. The intensity circle reduces illumination from 100-10%.
DIMENSIONS
Patrice Only: 80 x 80 x 35mm
WT9343-N
£135.00
Dimmer Patrice: White – Stainless Steel Finish with Blue LED button – Outdoor (with waterproof housing)
- Hard Wired (24V)
- Supplied by: Watertec
- Suitable for: White Lights
- Application: Outdoor
Description:
White Dimmer control enables the operator to turn lights on/off by touchpad. The intensity circle reduces illumination from 100-10%.
DIMENSIONS
Patrice Only: h80mm x w80mm x d35mm
Waterproof Housing h135mm x w125mm x d80mm
WT9344-N
£247.00
Dimmer Patrice RGB – Indoor (no waterproof housing)
- Hard Wired (24V)
- Suitable for: RGB Lights
- Application: Indoor
Description:
RGB Dimmer control enables the operator to turn lights on/off, select individual colours or use a colour wheel to produce the desired colour.
DIMENSIONS
Patrice Only: h80mm x w80mm x d35mm
WT9340-N
£135.00

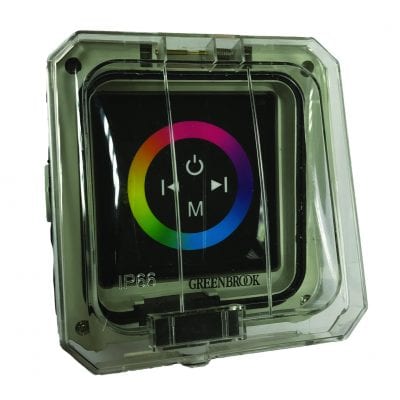

Dimmer Patrice RGB – Outdoor (with waterproof housing)
- Hard Wired (24V)
- Suitable for: RGB Lights
- Application: Outdoor
Description:
RGB Dimmer control enables the operator to turn lights on/off, select individual colours or use a colour wheel to produce the desired colour.
DIMENSIONS
Patrice Only: h80mm x w80mm x d35mm
Waterproof Housing h135mm x w125mm x d80mm
WT9341-N
£247.00

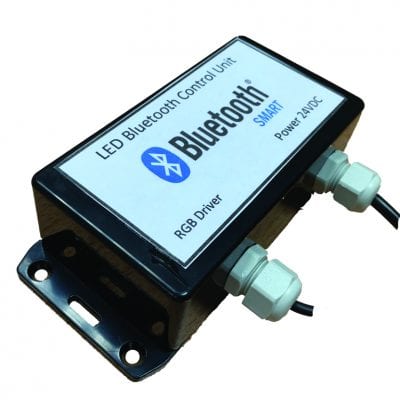

RGB IPhone/Android Control App
- Bluetooth operated by IPhone or Android device
- Supplied by: Watertec
- Suitable for: RGB Lights only
- Application: Indoor or Outdoor
- Range 10-30m dependent on location
Description:
RGB Home Bluetooth unit (supplied with IP65 rated housing) enables the operator to set up and control up to five different light applications which can be saved to individual iPhone and Android (some may not be compatible) users.
WT9335-N
£135.00
Custom settings available:
-
Colour Wheel – Choose and save individual colours
-
Various Pre-set colour modes available
-
Custom make colours with various light outputs
-
Camera – match the LED light to a picture
-
Music – LED lights will change to music selected in your playlists
-
Mic – LED lights will change in time when you sing or talk into your phone
